Stainless Steel Dishwasher Inlet Table

A made-to-order stainless steel inlet table for commercial dishwashing workflows, combining a left-side pre-rinse sink, right-side rack landing area and project-specific dishwasher connection.

Product ID: SP-SSDT-001Stainless Steel EquipmentDishwashing Tables

Request Product Quote View Category

Overview

Product Overview

SourcePro coordinates dishwasher inlet-table dimensions, rack-flow direction, sink position and connection details against the selected commercial dishwasher and project layout.

SUS304 is preferred for wet-zone use. SUS201 may be reviewed against budget, cleaning conditions and confirmed project requirements.

Key Features

Made-to-order dimensions coordinated with the selected dishwasher model

Left-to-right or right-to-left rack flow can be reviewed for the project layout

Sink size, position, backsplash and connection height are confirmed before production

SUS304 is preferred for wet zones; SUS201 can be reviewed where appropriate

Applications

Where This Product Is Used

Restaurant dishwashing workflow

Hotel back-of-house dishroom

Central kitchen washing zone

Buyer Benefits

Why Buyers Choose This Type

Supports a continuous rack path from pre-rinse preparation into a compatible hood-type or pass-through dishwasher

Coordinates table height and connection details with equipment and site requirements

Allows the wet-zone material and fabrication configuration to be reviewed before quotation

Technical Data

Specifications

Reference Configuration

1200 × 750 × 850 mm; one 500 × 400 × 250 mm left-side sink; right-side dishwasher connection; left-to-right rack flow; 200 mm rear backsplash; open stainless steel frame; four adjustable feet; 500 × 500 mm rack reference.

Typical Range

Typical project reference: L 1000–1600 mm; D 700–750 mm; H 850–880 mm, subject to dishwasher model and layout review.

Materials

SUS304 wet-zone configuration preferred; SUS201 subject to project and technical review.

Size Options

Reference size 1200 × 750 × 850 mm; typical project range L 1000–1600 mm, D 700–750 mm and H 850–880 mm.

Configuration Options

Rack-flow direction, overall dimensions, sink size and position, backsplash, connection height, utilities, material grade and fabrication details.

Reference Configuration

Reference Dimensions

1200 × 750 × 850 mm

Sink

One left-side bowl, 500 × 400 × 250 mm reference

Rear Backsplash

200 mm

Workflow

Rack Flow

Left-to-right reference; final direction by project

Dishwasher Connection

Right side; matched to selected machine

Rack Reference

500 × 500 mm

Structure

Support

Open frame with four adjustable stainless steel feet

Material

Stainless Steel

SUS304 wet-zone preferred; SUS201 subject to review

Reference configuration only. Final dimensions, rack-flow direction, sink position, dishwasher connection, utilities, materials and fabrication details must be confirmed against the selected dishwasher model and project layout before quotation and production.

Detail Views

Product Details

Detail images show construction and configuration points for product selection and inquiry discussion.

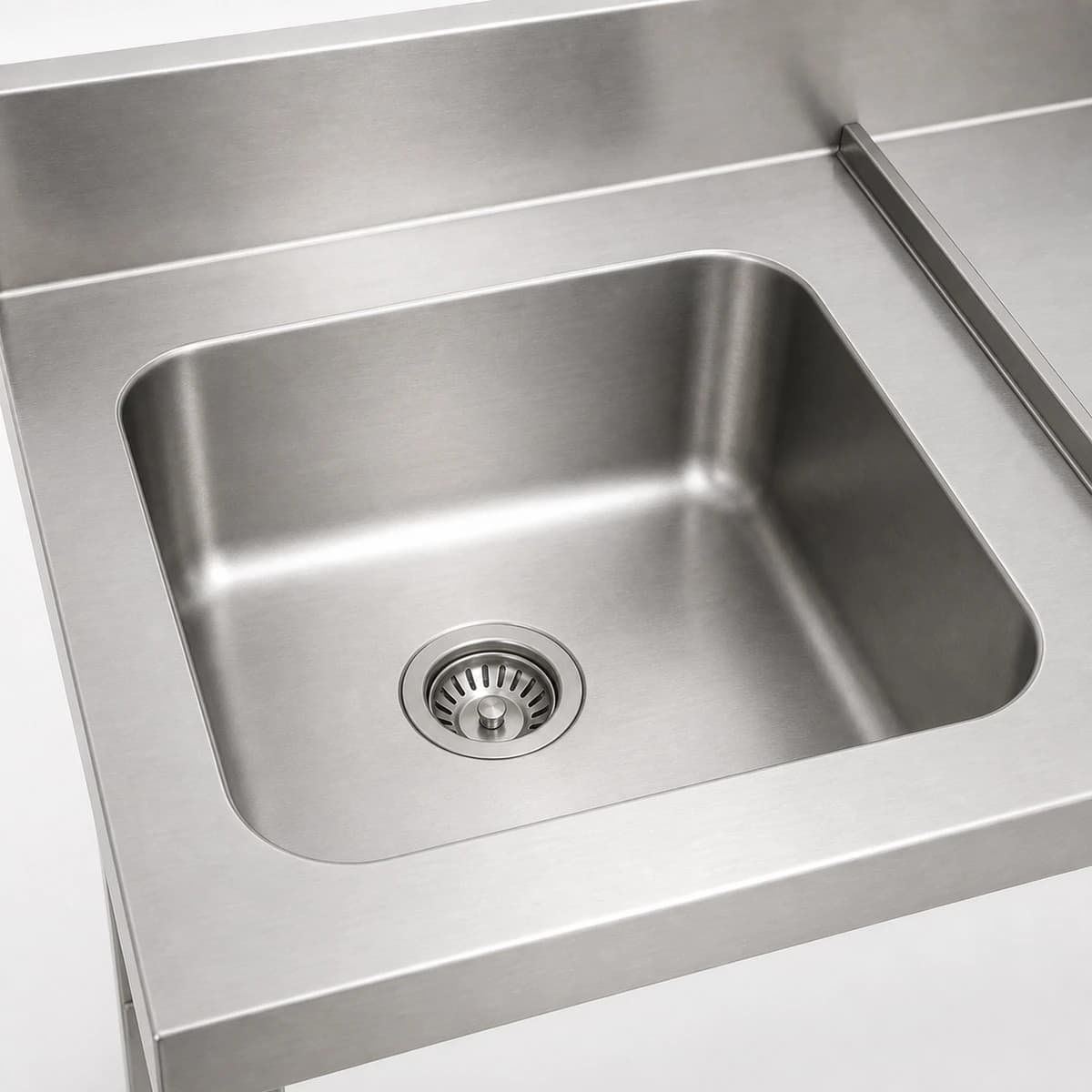

Close-up of the integrated stainless steel sink bowl, drain and removable strainer

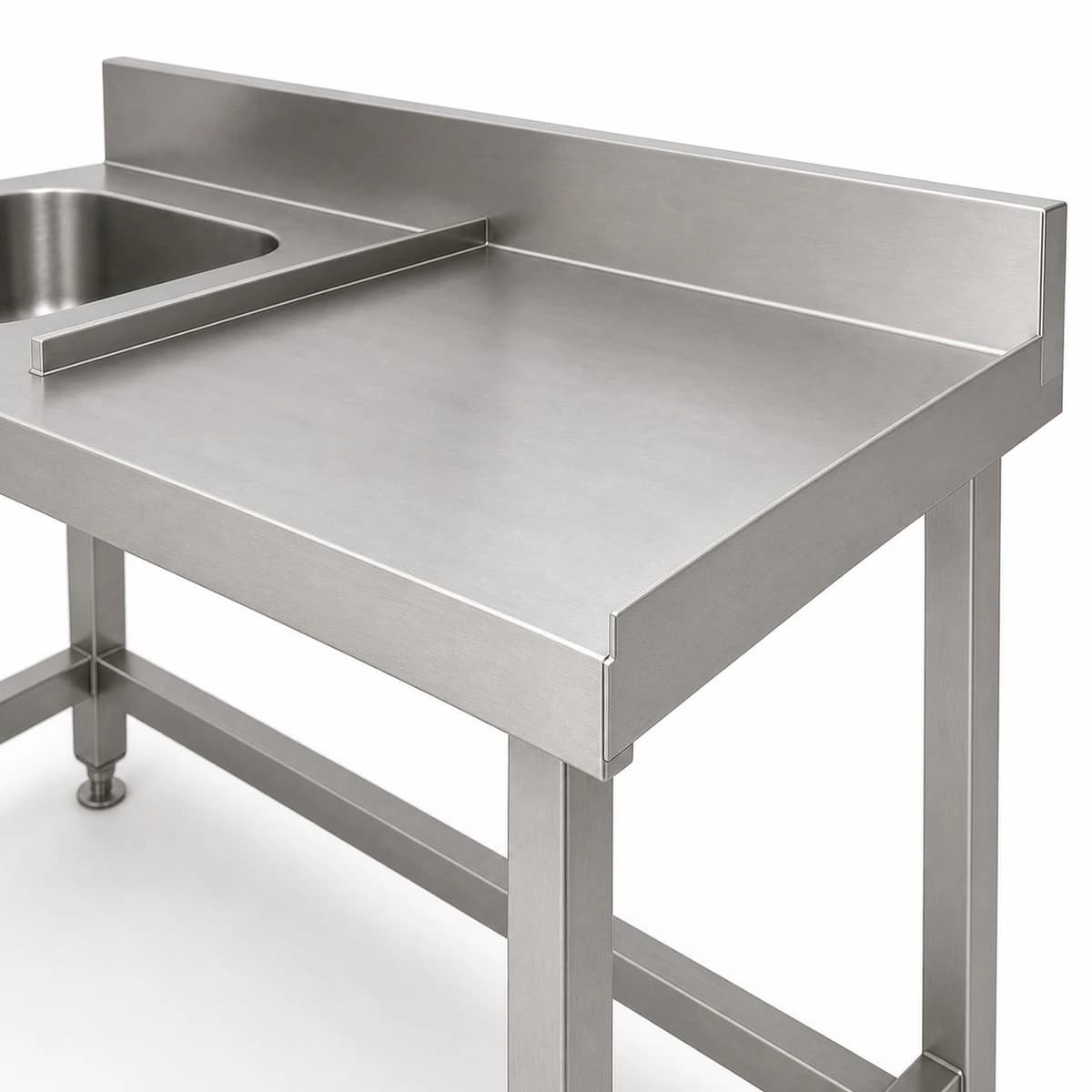

Close-up of the rack guide and dishwasher-side connection edge

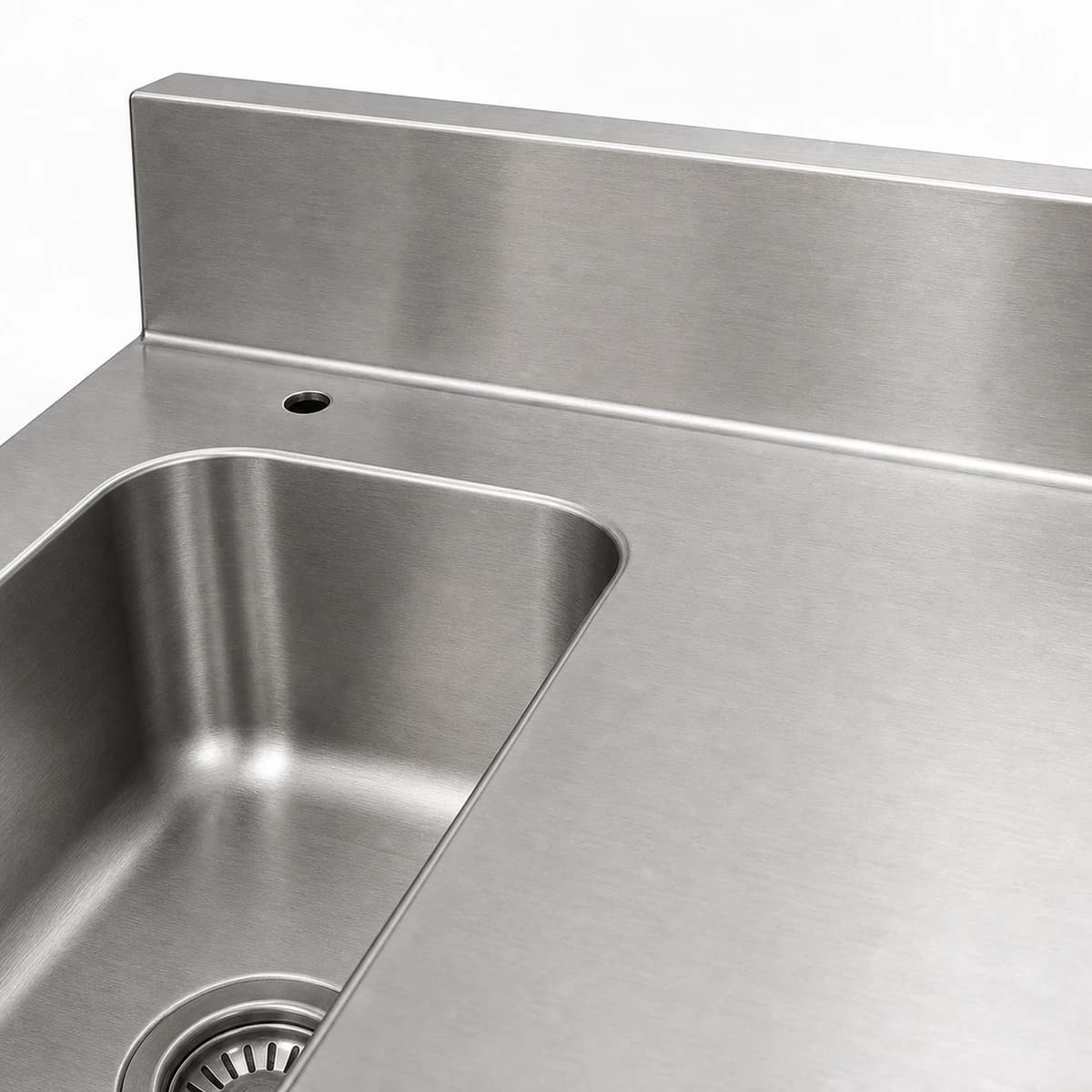

Close-up of the rear backsplash and pre-rinse fitting provision on a dishwasher inlet table

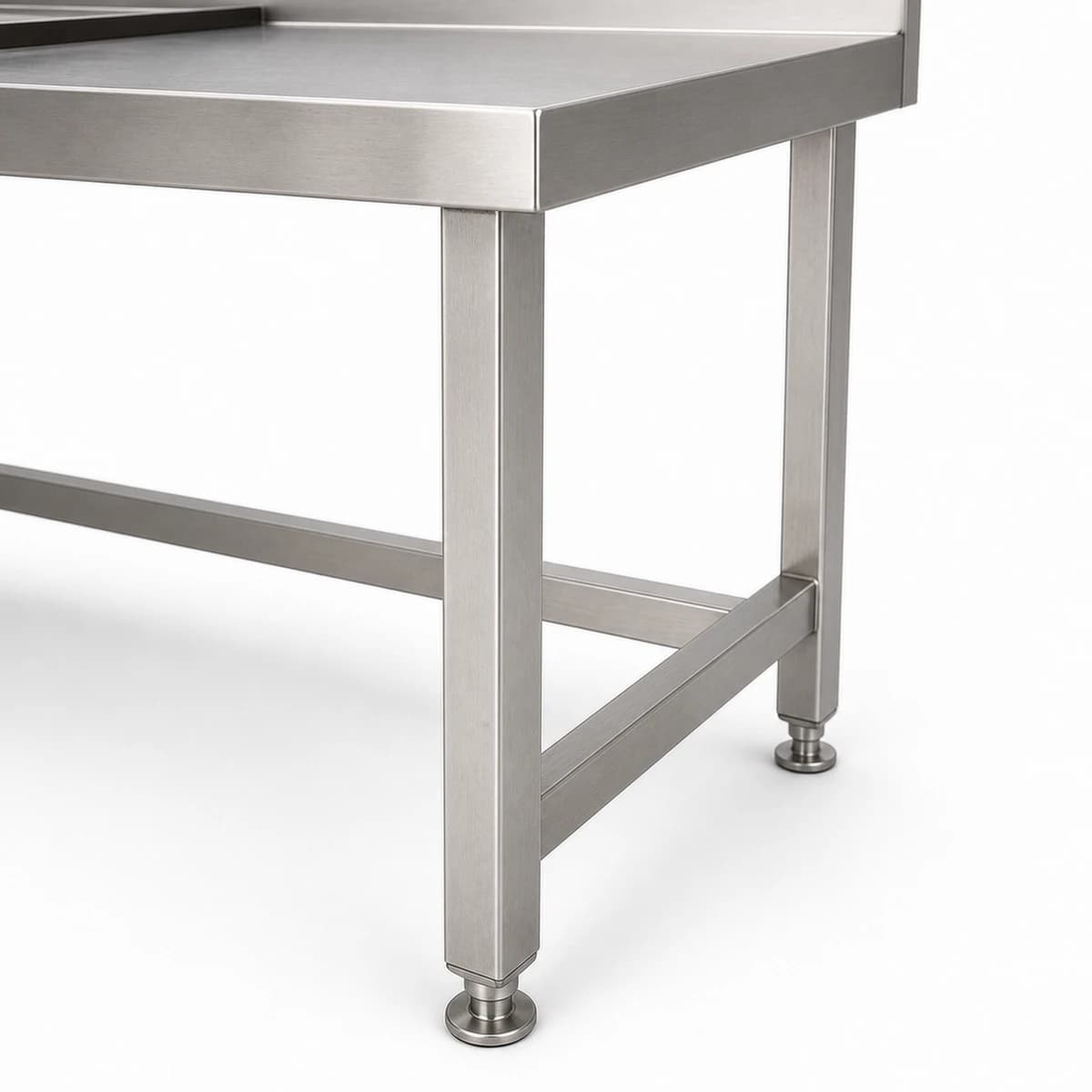

Close-up of the adjustable stainless steel foot and open support frame

Application Scenario

Commercial Kitchen Applications

Application visuals show typical usage scenarios. They are not presented as completed SourcePro project cases.

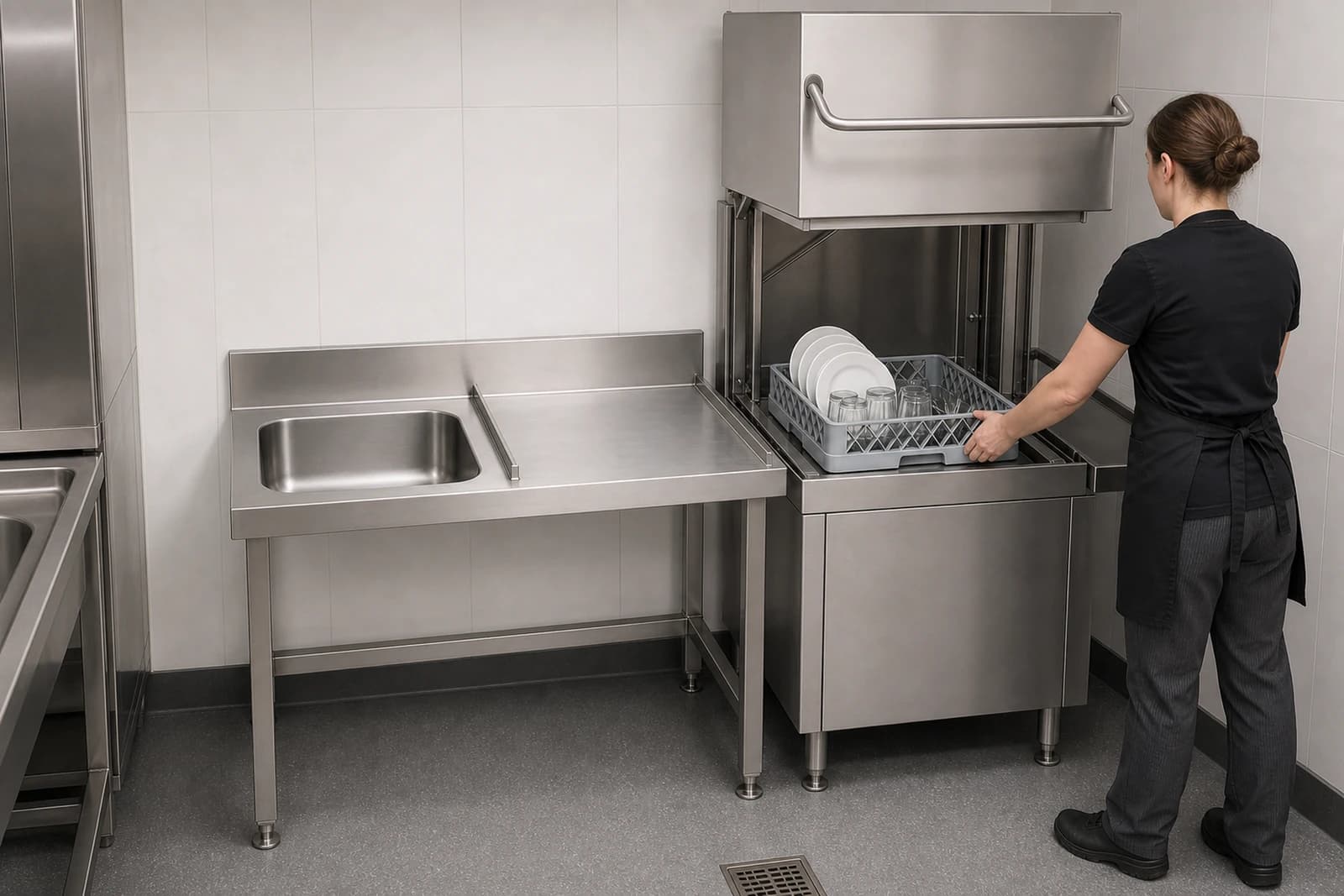

Stainless steel dishwasher inlet table beside an open hood-type dishwasher in a typical restaurant dishwashing workflow

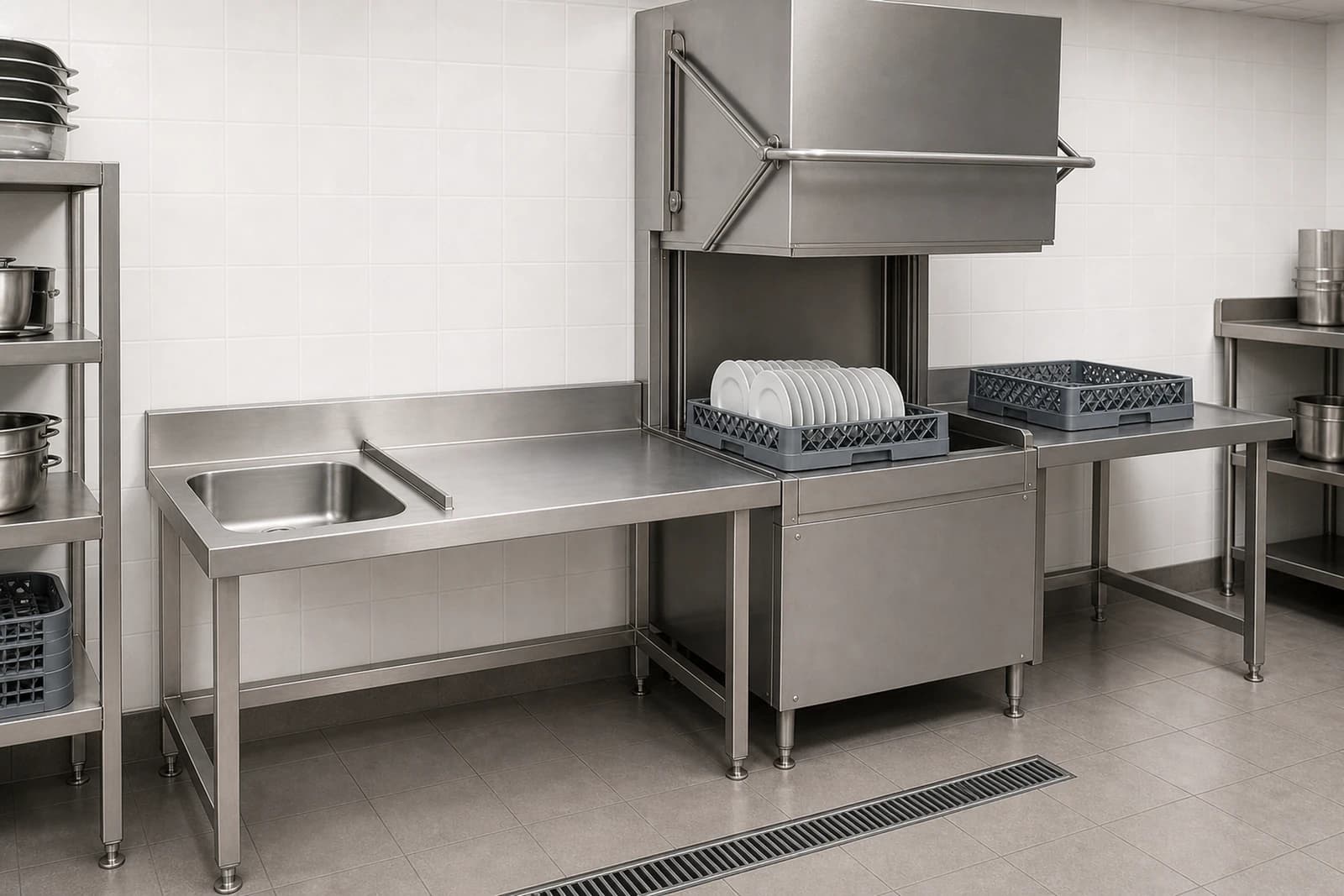

Commercial dishwasher inlet table with a raised hood dishwasher in a typical hotel back-of-house dishroom

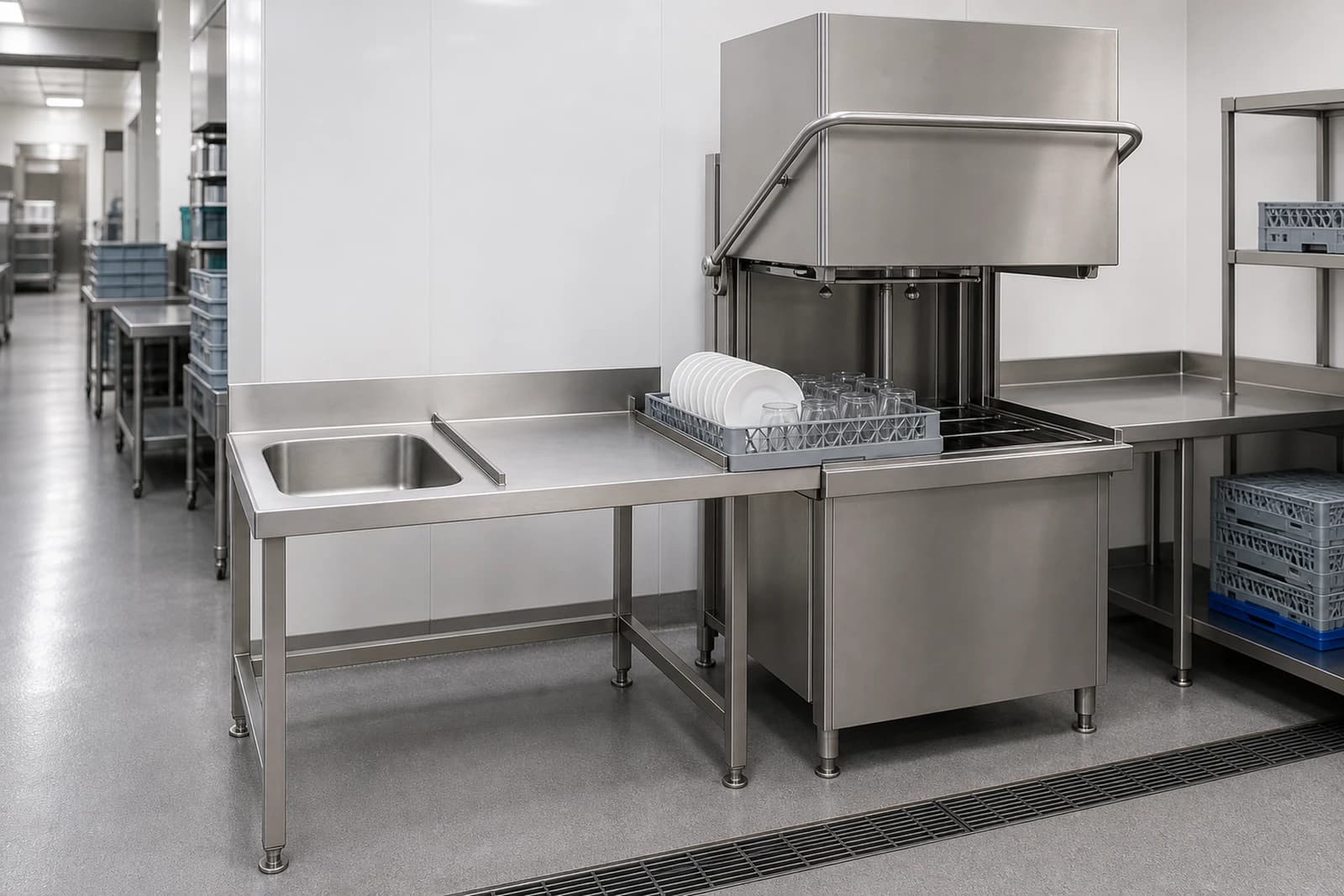

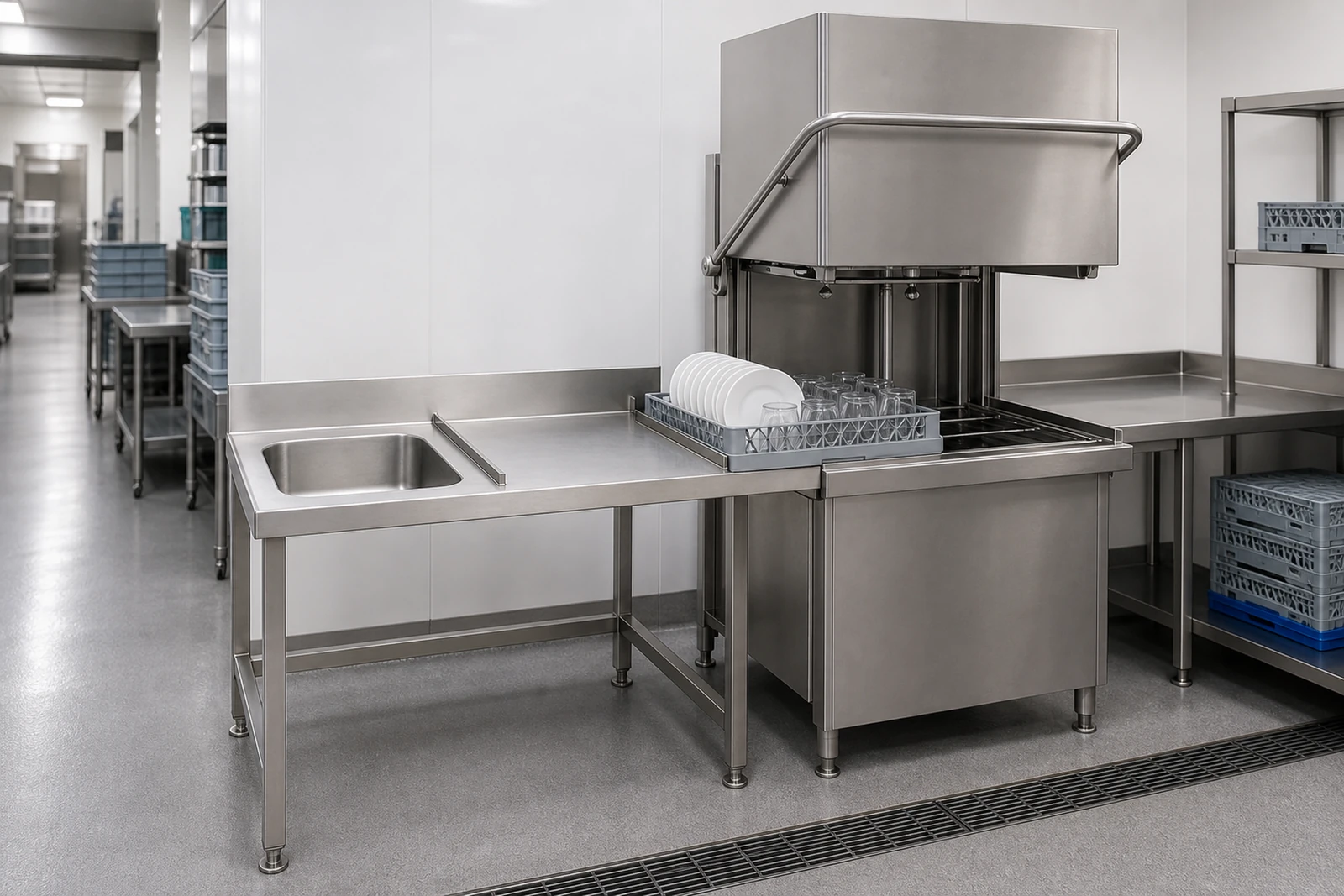

Stainless steel inlet table and open hood dishwasher in a typical central kitchen washing zone

Customization

Customization Options

Rack-flow direction

overall dimensions

sink size and position

backsplash

dishwasher connection height

utility provisions

material grade

fabrication details

Documents

Product Documents

Catalog Available on Request

Share your project details and SourcePro will provide suitable documentation during inquiry follow-up.

Request Product Documents

Specification Sheet Available on Request

Share your project details and SourcePro will provide suitable documentation during inquiry follow-up.

Request Product Documents

Stainless Steel Dishwasher Inlet Table FAQ

What type of commercial dishwasher is this inlet table designed for?

It is intended for compatible hood-type or pass-through commercial dishwasher layouts. The exact machine model and connection requirements must be reviewed before quotation and production.

Can the inlet table be made for left-to-right or right-to-left rack flow?

Yes. Rack-flow direction can be reviewed against the dishroom layout, operator position and selected dishwasher. The reference configuration shown is left-to-right.

How is the table matched to the dishwasher?

The dishwasher model, rack size, wash-bed height, connection edge, overall layout and utility positions are checked during technical confirmation.

Can the sink size and position be customized?

Sink dimensions and position can be reviewed according to pre-rinse workflow, available space and the confirmed rack-flow direction.

Can SUS304 stainless steel be specified?

Yes. SUS304 is preferred for wet-zone use. Final grade and thickness remain subject to the confirmed specification and technical review.

What information is required before quotation?

Share the dishwasher brand and model, rack size, rack-flow direction, layout drawing, required dimensions, sink preference, utility information, quantity and destination country.
